340HP Dongfeng 6X4 Dumper Truck

 340HP Dongfeng 6X4 dumper  truck

 Chassis Dimensions(mm)
Mode: DFL3251AW1-K21R Type: 6x4
Overall chassis length: 7650 Cab width: 2500
Cab height (unladen): 3140 Wheel base: 3800+1450
Front over hang: 1500 Rear over hang: 1000
Maximum velocity (Km/h): 90
Chassis weights (kg)
G.V.W: 25000 Curb weight(chassis): 15000
Frame profile Dimensions(mm)
Frame width (front ): 940 Frame width ( rear ): 860
Profile height: 300 Profile width: 90
Engine Type: Dongfeng Cummins ISLe340 40
Emission level: Euro IV

Max.power 250kw/2100rpm
Max.torque 1425Nm at 1400rpm
Number of cylinders 6
Displacement (lit) 8.9
Cylinder bore (mm) 114
Stroke (mm) 144.5
System: Water cooled,turbocharged,after cooled,direct injection,High pressure common rail fuel system,heating for starting.

Clutch Type: Made in China, Plate's diameter¢430
System Hydraulic control with air booster, pulling

Gear box Type: 12JS180T DD
No. of gears: 12forward gears & 2reverse ,synchronized

Gear ratios: 15.53,12.08,9.39,7.33,5.73,4.46,3.48,2.71,2.10,1.64,1.28,1.00,14.86R1,3.33R2


Brake System:  Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles , exhaust brake,ABS.

Cab:  Sleeper cab,forward control type,low roof, new face, all welded steel cab of tilt type,antirust covering.Mechanical driver's seat, wind shield wiper and washer, rear mechanical cab suspension.

Option: electrical cab tilting,air conditioning system, electric windows, central lock.

Axle: Front Elliot type, I beam section
Load capacity(ton)7
RearDouble reduction ,tandem axle, with axle lock and wheel lock, ratio 5.73
Load capacity(ton)13
Tyre: 12.00R20
Suspension: Front 10-leaf spring with shock absorber
Rear 12-leaf spring
Battery Voltage (V): 24
Battery capacity (A.h): 180X2
Fuel Type: Steel fuel tank, with lockable cap
Capacity 400 lit
Option: SCR pipe heater.front protection.

Dump Body
Size (mm)5600*2300*1500
Volume (m³)19.3
Material Carbon steel
Thickness Side/ 6mm Front/ 6mm Bottom/ 8mm
Tipping type: Hydraulics, Front tipping type


  Our advantage:

a.Competitive Price and Excellent Quality
b.More than 10 years' experience as a manufacturer
c.CCC, ISO, BV certification
d.Perfect after-sale service
e.Customized products available with us,
f.Export covering More than 50 countries and regions
g.Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars)  per year


Company  Profile:

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.

Company scene

1. Good performance, durable and elastic.
2. The lowest price with top quality in China.
3. Standard materials according to technical drawing.
4. OEM service, quality assurance.
5. Professional supplier with many years experience.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Exporting

1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana


FAQ
1,Q: What's the brand of your truck?
    A: Our brand is CLW, First it is the biggest truck manufacture in China, our             products cover all series such as tractor truck, tipper truck, cargo truck,   and other special trucks.

2,Q: How can we trust your company?
   A: We are the official authority company by Chengli Special Automobile              Co., Ltd.  And we are registered in the Commercial Department of China,          with the whole qualification for exporting, you would feel relax and safe to do business with us.We are your reliable partner.

3,Q: Can u provide the ISO9001 certificate or some others                        related?
    A: Yes. We have been exporting trucks for years. Rich experience for                     exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

4,Q: How about warranty item?
   A: We could support u original spare parts. And also email or telephone assist        in the  following days. If necessary, for large quantity ordered, our engineer        could  go for technical assist.

5,Payment:
   30% deposit after order confirmation, 70% balance should be paid before          delivery. All by T/T, L/C.

6,Delivery time:
   25 working days after payment is received.


Packaging & Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.


Contact with me!

ChengLi Special Automobile Co., Ltd
International Trade Center
Contact person: Mike Xue
Website: http://truckcl.en.alibaba.com
Cel:+86-18707153760/13872881063
Tel: +86-27-83796298






 340HP Dongfeng 6X4 dumper  truck

 Chassis Dimensions(mm)
Mode: DFL3251AW1-K21R Type: 6x4
Overall chassis length: 7650 Cab width: 2500
Cab height (unladen): 3140 Wheel base: 3800+1450
Front over hang: 1500 Rear over hang: 1000
Maximum velocity (Km/h): 90
Chassis weights (kg)
G.V.W: 25000 Curb weight(chassis): 15000
Frame profile Dimensions(mm)
Frame width (front ): 940 Frame width ( rear ): 860
Profile height: 300 Profile width: 90
Engine Type: Dongfeng Cummins ISLe340 40
Emission level: Euro IV

Max.power 250kw/2100rpm
Max.torque 1425Nm at 1400rpm
Number of cylinders 6
Displacement (lit) 8.9
Cylinder bore (mm) 114
Stroke (mm) 144.5
System: Water cooled,turbocharged,after cooled,direct injection,High pressure common rail fuel system,heating for starting.

Clutch Type: Made in China, Plate's diameter¢430
System Hydraulic control with air booster, pulling

Gear box Type: 12JS180T DD
No. of gears: 12forward gears & 2reverse ,synchronized

Gear ratios: 15.53,12.08,9.39,7.33,5.73,4.46,3.48,2.71,2.10,1.64,1.28,1.00,14.86R1,3.33R2


Brake System:  Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles , exhaust brake,ABS.

Cab:  Sleeper cab,forward control type,low roof, new face, all welded steel cab of tilt type,antirust covering.Mechanical driver's seat, wind shield wiper and washer, rear mechanical cab suspension.

Option: electrical cab tilting,air conditioning system, electric windows, central lock.

Axle: Front Elliot type, I beam section
Load capacity(ton)7
RearDouble reduction ,tandem axle, with axle lock and wheel lock, ratio 5.73
Load capacity(ton)13
Tyre: 12.00R20
Suspension: Front 10-leaf spring with shock absorber
Rear 12-leaf spring
Battery Voltage (V): 24
Battery capacity (A.h): 180X2
Fuel Type: Steel fuel tank, with lockable cap
Capacity 400 lit
Option: SCR pipe heater.front protection.

Dump Body
Size (mm)5600*2300*1500
Volume (m³)19.3
Material Carbon steel
Thickness Side/ 6mm Front/ 6mm Bottom/ 8mm
Tipping type: Hydraulics, Front tipping type


  Our advantage:

a.Competitive Price and Excellent Quality
b.More than 10 years' experience as a manufacturer
c.CCC, ISO, BV certification
d.Perfect after-sale service
e.Customized products available with us,
f.Export covering More than 50 countries and regions
g.Annual production value topped 1500, 000, 000 RMB (240, 000, 000 US dollars)  per year


Company  Profile:

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment. LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.

Company scene

1. Good performance, durable and elastic.
2. The lowest price with top quality in China.
3. Standard materials according to technical drawing.
4. OEM service, quality assurance.
5. Professional supplier with many years experience.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Exporting

1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana


FAQ
1,Q: What's the brand of your truck?
    A: Our brand is CLW, First it is the biggest truck manufacture in China, our             products cover all series such as tractor truck, tipper truck, cargo truck,   and other special trucks.

2,Q: How can we trust your company?
   A: We are the official authority company by Chengli Special Automobile              Co., Ltd.  And we are registered in the Commercial Department of China,          with the whole qualification for exporting, you would feel relax and safe to do business with us.We are your reliable partner.

3,Q: Can u provide the ISO9001 certificate or some others                        related?
    A: Yes. We have been exporting trucks for years. Rich experience for                     exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

4,Q: How about warranty item?
   A: We could support u original spare parts. And also email or telephone assist        in the  following days. If necessary, for large quantity ordered, our engineer        could  go for technical assist.

5,Payment:
   30% deposit after order confirmation, 70% balance should be paid before          delivery. All by T/T, L/C.

6,Delivery time:
   25 working days after payment is received.


Packaging & Shipping:

1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:

1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.


Contact with me!

ChengLi Special Automobile Co., Ltd
International Trade Center
Contact person: Mike Xue
Website: http://truckcl.en.alibaba.com
Cel:+86-18707153760/13872881063
Tel: +86-27-83796298







Flange connecting pipe, you can keep the line seal performance, make the pipe connection closer;When a section of pipe to replace with Carbon Steel Flange also relatively easy to replace pipe, carbon steel flanges of easy operation, only need to unscrew the bolt, the carbon Steel Flange, can replace the pipe;The use of carbon steel flange can also convenient check pipe line;In addition, use of carbon steel flange and pipe line closed a long period.GOST Weld Plate Flange

size range:DN15 to DN2000

Design :plate falnge 12820-80,Welding Neck Flange 12821-80

Pressure: PN6, PN10, PN16, PN25, PN40

Material: carbon steel CT-20, 16MN ,stainless steel 304/304L, 316/316L

Coating: rust-proof oil, cold and hot galvanize

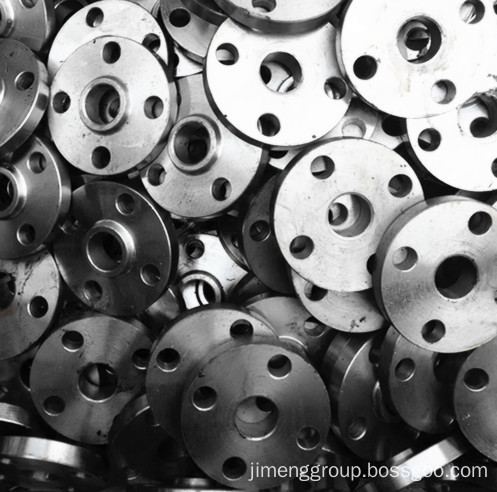

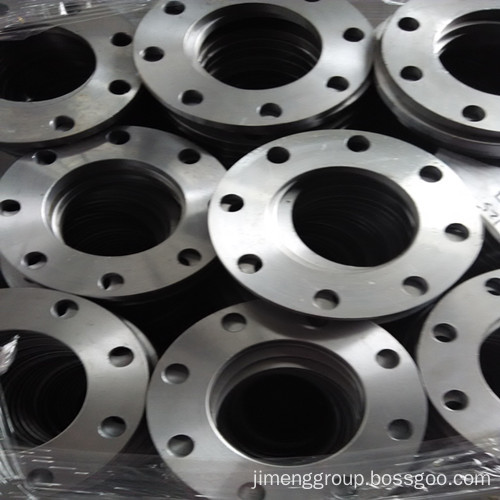

GOST Weld Plate Flange
