PU220 Series 22va Stainless Steel Solenoid Valves

Posted on

Model NO.: PU220-06S
Power Supply: AC or DC
Usage: Flow Control
Standard: DIN
Application: Industrial Usage, Water Industrial Usage, Household Usage
Port Size: 1/8′′~2′′
Operating Speed: 50~500mm/S
Delivery Time: Within 20 Days
Fluid: Air, Water, Gas, Oil
Trademark: WIIKADE
Transport Package: Plastic Bag & Carton
Specification: CE, ROHS, ISO9001
Origin: China
HS Code: 8412310090
Model NO.: PU220-06S
Power Supply: AC or DC
Usage: Flow Control
Standard: DIN
Application: Industrial Usage, Water Industrial Usage, Household Usage
Port Size: 1/8′′~2′′
Operating Speed: 50~500mm/S
Delivery Time: Within 20 Days
Fluid: Air, Water, Gas, Oil
Trademark: WIIKADE
Transport Package: Plastic Bag & Carton
Specification: CE, ROHS, ISO9001
Origin: China
HS Code: 8412310090

PU220  series stainless steel solenoid valves are popular with customers by the compact design and the such many kinds, the thread size range from 1/8" to 2". Suitable for various working pressure, different temperature and many kinds of medium. 2/2, 3/2, normally closed and normally open, pipe connection and flange connection, brass materials and stainless steel materials, direct acting type and pilot type.

Warranty

Any question or problem will be respond within 24 hours.

One year guarantee:

One year since delivery.

Lifetime service:

Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half

price in lifetime.

Problem solve:

If you can't solve the problem in your local, please delivery the product to us, we will repare it, or we send

our technicist to you.

Quality control:

All the products are calibrated with real working condition, and 100%tested before shipping as qualified

product.

Integrity:

All the warrenty and guarantee from us will be put into come true.



Model
PU225-03A
PU225-04A
Pu225-06A
PU225-08A
PU225-12A
PU225-14A
PU225

-20A

SPU225-03A
SPU225-04A
SPU225-06A
SPU225-08A
SPU225-12A
SPU225-14A

Working  medium
                  Air, water. oil

Motion  pattern
                  Guide  type

Type
                    Normal  close  type

Aperture  of  flow

  ratea
13
13
25
25
38
38
50

CV  value
4.50
4.50
12.00
12.00
22.00
30.00
48.00

Jonit  Pipe  Bore
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"

Meterial  of  body
      Brass  or  steel

Operation  Fluid

  viscosity
                    50CTS

Working  perssure
                      0.5~10  kg/cm2

Max  pressure

  resisitance
                                    15        kg/cm2

Woking  temberature
                                        -5~80

Port size Orifice(mm) CV valve Min.Pressire Max. working pressure(bar) Max. tem Power
Air, gas, water Light oil AC220V   DC24V
1/8'' 3 0.23 0 13 10 120ºC 22VA 13W
1/4'' 3 0.23 0 13 10 120ºC 22VA 13W
3/8'' 10.5 1.68 0 16 13 120ºC 22VA 13W
1/2'' 13 4.5 0.5 16 13 120ºC 22VA 13W
3/4'' 20 7.6 0.5 16 13 120ºC 22VA 13W
1'' 25 12 0.5 16 13 120ºC 22VA 13W
1-1/4'' 35 22 0.5 16 13 120ºC 22VA 13W
1-1/2'' 40 30 0.5 16 13 120ºC 22VA 13W
2'' 50 48 0.5 16 13 120ºC 22VA 13W

PU220  series stainless steel solenoid valves are popular with customers by the compact design and the such many kinds, the thread size range from 1/8" to 2". Suitable for various working pressure, different temperature and many kinds of medium. 2/2, 3/2, normally closed and normally open, pipe connection and flange connection, brass materials and stainless steel materials, direct acting type and pilot type.

Warranty

Any question or problem will be respond within 24 hours.

One year guarantee:

One year since delivery.

Lifetime service:

Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half

price in lifetime.

Problem solve:

If you can't solve the problem in your local, please delivery the product to us, we will repare it, or we send

our technicist to you.

Quality control:

All the products are calibrated with real working condition, and 100%tested before shipping as qualified

product.

Integrity:

All the warrenty and guarantee from us will be put into come true.



Model
PU225-03A
PU225-04A
Pu225-06A
PU225-08A
PU225-12A
PU225-14A
PU225

-20A

SPU225-03A
SPU225-04A
SPU225-06A
SPU225-08A
SPU225-12A
SPU225-14A

Working  medium
                  Air, water. oil

Motion  pattern
                  Guide  type

Type
                    Normal  close  type

Aperture  of  flow

  ratea
13
13
25
25
38
38
50

CV  value
4.50
4.50
12.00
12.00
22.00
30.00
48.00

Jonit  Pipe  Bore
3/8"
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"

Meterial  of  body
      Brass  or  steel

Operation  Fluid

  viscosity
                    50CTS

Working  perssure
                      0.5~10  kg/cm2

Max  pressure

  resisitance
                                    15        kg/cm2

Woking  temberature
                                        -5~80

Port size Orifice(mm) CV valve Min.Pressire Max. working pressure(bar) Max. tem Power
Air, gas, water Light oil AC220V   DC24V
1/8'' 3 0.23 0 13 10 120ºC 22VA 13W
1/4'' 3 0.23 0 13 10 120ºC 22VA 13W
3/8'' 10.5 1.68 0 16 13 120ºC 22VA 13W
1/2'' 13 4.5 0.5 16 13 120ºC 22VA 13W
3/4'' 20 7.6 0.5 16 13 120ºC 22VA 13W
1'' 25 12 0.5 16 13 120ºC 22VA 13W
1-1/4'' 35 22 0.5 16 13 120ºC 22VA 13W
1-1/2'' 40 30 0.5 16 13 120ºC 22VA 13W
2'' 50 48 0.5 16 13 120ºC 22VA 13W

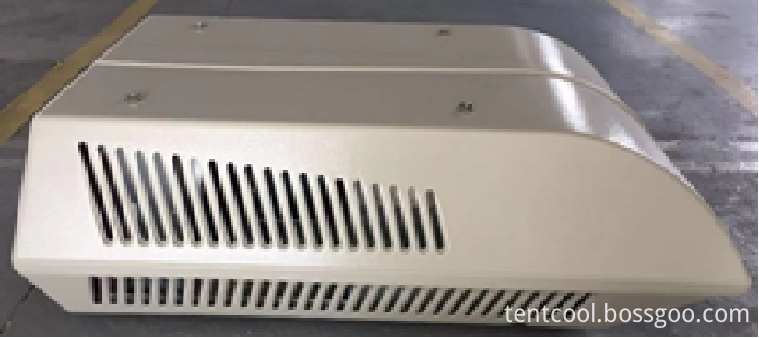

Rooftop Shelter Air Conditioners are widely applied to crane equipment, vehicles, and small vessels etc. The units have cooling, heating, ventilation and dehumidification functions, with anti-shake, anti-vibration and high reliability characteristics. All-in-one design improves the stronger applicability and generality.



Features:Rooftop Shelter Air Conditioner

1. Instant cooling/Temperature adjustable

2. Precise temperature control

3. Modern design and high compatibility

4. Memory function and delay start

5. Low noise

6. Delay start function

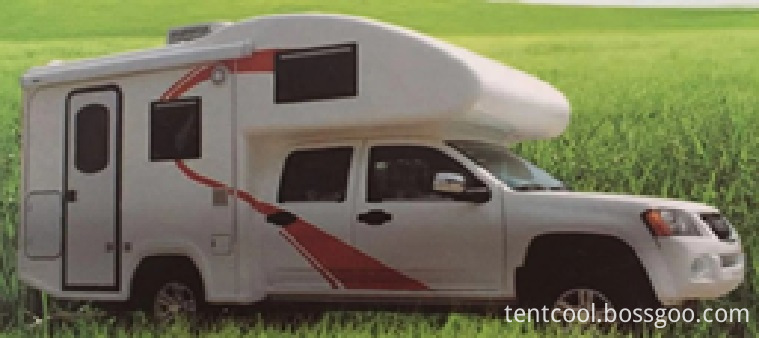

 Recreational Vehicle Air Conditioner







Technical Data:

Model No.

TRS-020HCWa

TRS-032HCWa

TRS-035HCWa

Cooling capacity

kW/BTU

2.0KW/7000BTU

3.2KW/11000BTU

3.5KW/12000BTU

Electric source

PH-V-Hz

220V 50Hz / 60Hz

220V 50Hz / 60Hz

220V 50Hz / 60Hz

Rated Cooling Power Input

W

1050

1380

1220

Rated Cooling Current Input

A

4.8

6.3

6.1

Working Condition

℃

`-30~45

`-30~45

`-30~45

Temperature Control Range

℃

15~35

15~35

15~35

Refrigerant

R22/R410a

R22/R410a

R22/R410a

Noise

 dB(A)

≤50

≤50

≤50

Dimension(LxWxH)

mm

980*640*230

1060*720*365

1060*720*365



Rooftop Shelter Air Conditioner

Rooftop Shelter Air Conditioner, Recreational Vehicle air conditioner, Touring Vehicle air conditioner, Motor homes air conditioner
